Liquid Ring Vacuum Pump
KDP-series
kowel has been trying to develop vacuum industry since it't establishment in 1989.

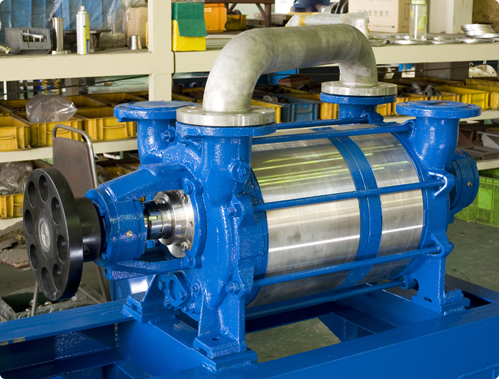

LIQUID
Principle
Gas entering via the suction port is conveyed into the impeller casing AB and trapped in the space between two impeller blades. As the impeller rotates-eccentrically to the liquid ring and casing - the volume between the blades increases creating vacuum. As the cycle progresses towards the discharge port the volume decreases as the liquid ring creates compression.
This compression continues until the gas in discharged through the discharge port CD. A small make-up continuously. The make-up liquid also maintains the liquid ring and absorbs the heat energy of compression.
I = Suction phase
II = Compression phase
