· Nylon & Polyester Chip Dryer
|
|
|
 |
|
|
· To remove moisture, volatile Mediums other than moisture, like Organic vapor and Etc.
|
|
|
 |
|
· Synthetic resin contain Moisture & Organic vapors
· Thread cut or Silver mark during thread ejection
· To avoid these problems, The synthetic resin should be dried before ejection
· When dry the product in Atmosphere, The products color and quality can be changed So,
We use Vacuum dry process
|
|
|
 |
|

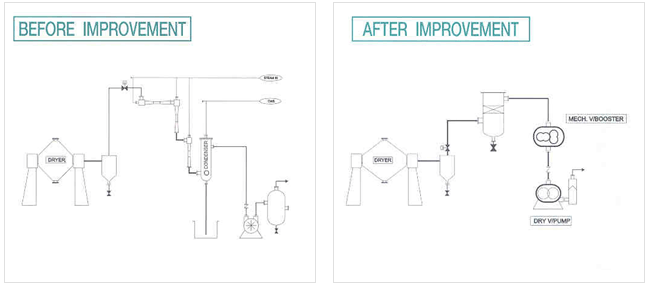

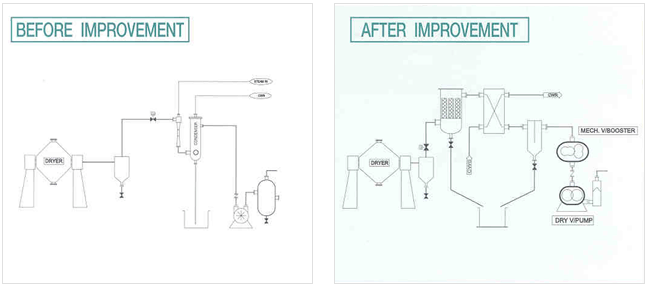

| Before (Wet type) |
After (Dry type) |
Steam Ejector Barometric Condenser
Water Ring Vacuum Pump |
Dry Screw Vacuum Pump With
Mechanical Booster |
|
|
|
 |
|
| Description |
Application Plant |
Process |
End User |
| Synthetic Fiber Ind. |
Vacuum Dryer
Process |
PET Nylon |
KOLON Industries HYOSUNG T & C SK Industries KOHAP Ltd. SAMYANGSA |
|
|
|
 |
|
| Before (Wet type) |
After (Dry type) |
| Too much Operation Cost |
Cost save enable product price Down |
Waste Water Problem
(Process Gas + Mist + Water) |
Dry operation eliminate Waste water problem |
| Long operation Cycle (12 ~ 24hr) |
Shorten process Cycle |
Unstable vacuum due to Cooling water
temp. variation |
Mechanical type operation makes
Constant Vacuum |
| Need large installation space |
Small installation space Effective operation |
|
|
|
|
|
|
