· Fatty Acid Distillation
|
|
|
 |
|
· To remove Free Fatty Acid and moisture.
· The process is consist of following 4 parts;
- Free Heat and Dehydration
- Thermo Boiler
- Condensing
- Vacuum unit
|
|
|
 |
|
· Reduce very much utility cost (steam, water)
· Eliminate Waste Water treatment process
· Low operation cost
· Simple and stable Vacuum system
· Shorten process cycle
· Maximize product quality
· Small installation space & cost
· Production cost reduction with above advantages
|
|
|
 |
|

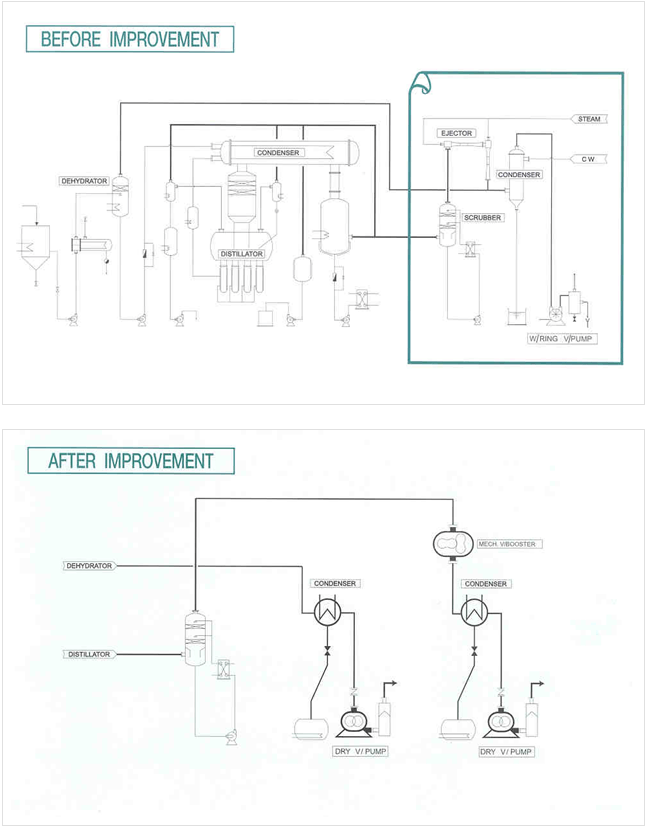

| Before (Wet type) |
After (Dry type) |
Steam Ejector, Condenser, Chiller,
Water Ring Vacuum pump |
Dry Screw Vacuum Pump
With Mechanical Booster |
|
|
|
 |
|
| Description |
Application Plant |
Process |
End User |
| Chemical Medicine Food Ind. |
Fatty acid distillation
Vitamin Refining
Food additive distilling
Edible Oil |
Soap manuf.
Fish oil Lubricant
Paint adhesive Rice oil refining |
DONGSAN C & G
SHINYANG Oil & Fat
PYUNGHWA Soap
HYOSUNG Industries
LG Chemical
KOLON Chemical
SAMCHUNRI Pharmacy |
|
|
|
 |
|
| Basic Specification |
1. Capacity: 1.3Ton/Hr
2. Oper. Pressure: 3Torr
3. Steam Stripping Nozzle: Nozzle (3 x 6ea.), Pressure (1kg/cm2G)
4. Steam Nozzle for Ejector: 1st (phi 3.5), 2nd (phi 7), Pressure (9-10kg/cm2)
5. Brine Cooling water: 40m3/hr (Temp.: 12℃)
6. Total Air Leakage: 4kg/hr
|
| Utility Consumption (Wet type) |
Utility Consumption (Dry type) |
a) Steam consumption for stripping nozzle: 46.8kg/hr
b) Steam consumption for Ejector:
· 1st Stage: 50.7kg/hr
· 2nd Stage: 203kg/hr
c) Electric:
· Chiller: 38kw
· Vacuum pump: 19kw
· Cooling Water pump: 3.8kw
|
a) Steam Consumption for stripping nozzle: 12kg/hr
b) Electric:
· Mechanical Booster: 11kw
· Dry Screw Vacuum pump: 30kw
|
|
|
|
|
