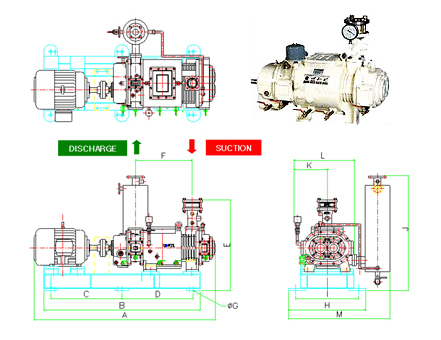

SIZE
PUMP MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
Port Size(A) |
| SUC |
DIS |
| KDP150 |
1238 |
1050 |
465 |
465 |
722 |
359 |
Φ22 |
602 |
482 |
913 |
277 |
457 |
40 |
40 |
| KDP330 |
1520 |
1300 |
590 |
590 |
766 |
433 |
Φ22 |
658 |
538 |
895 |
278 |
492 |
50 |
40 |
| KDP400 |
1573 |
1360 |
620 |
620 |
785 |
492 |
Φ22 |
668 |
548 |
995 |
287 |
512 |
65 |
50 |
| KDP800 |
1750 |
1550 |
715 |
715 |
873 |
556 |
Φ22 |
750 |
630 |
275 |
375 |
643 |
100 |
65 |
|
