HOME > products > Dry Vacuum Pump

#
KDP-series kowel has been trying to develop vacuum industry since it't establishment in 1989.
세계 최초 부식 걱정없는 스테인리스 스틸 드라이 진공펌프, KSP300!
advantages
· 스테인리스 스틸(316L) 재질 사용
· 제약, 화학 등 부식 공정 최적의 진공펌프
· 오랜 사용 및 편리한 유지 보수
· 기술 집약형 스크류 타입 건식 진공펌프
kdpe300_img
Technical Specification
Specification KSP300
Nominal displacement 50/60Hz(㎥/Hr) 250 / 300
Ultimate Pressure (50/60Hz) 4.0x10-2kPa/6.6x10-3kPa
(0.3/0.05Torr)
Motor Power (kW/Hp) 11 / 15
Port Size Suction (A) 50
Discharge (A) 40
Cooling Water (ℓ/min.) 8
Weight (Pump only) 250kg
Dimension (mm) 417W x 348H x 901.5L

* Specifications are subject to change without notice to improve product quality and capacity has a tolerance of +/- 10%.

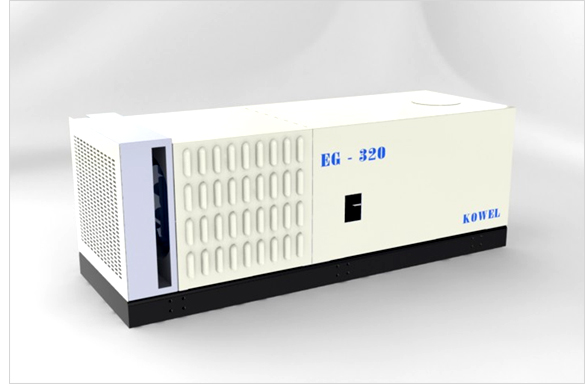

EG120~800
EG-series
advantages
· No cooling water & pipeline required
· Self cooling system (EG120 ~ 800)
· Portable & Easy installation
· Stable cooling water supply, pressure & temperature
Technical Specification
Model EG120 EG200 EG320 EG430 EG800
Nominal Capacity (60Hz) m3/hr 120 190 300 400 700
m3/min 2.0 3.1 5.0 6.7 11.6
Ultimate Pressure (60Hz) Torr ≤ 0.01 ≤ 0.01 ≤ 0.01 ≤ 0.01 ≤ 0.01
Nominal power kW 3.7 5.5 7.5 11 15
Rotation(50/60Hz) Rpm 2900/3500
Port Size(A) Suction / Discharge 40/40 40/40 50/40 65/50 100/65
Cooling Method Self cooling
