· Edible Oil Distillation
|
|
|
 |
|
|
· Deoxidation, Deodorization and to remove Free Fatty Acid and Etc.
|
|
|
 |
|
· Reduce very much utility cost (steam, water)
· Eliminate Waste Water treatment process
· Low operation cost
· Simple and stable Vacuum system
· Shorten process cycle
· Maximize product quality
· Small installation space & cost
· Production cost reduction with above advantages
|
|
|
 |
|

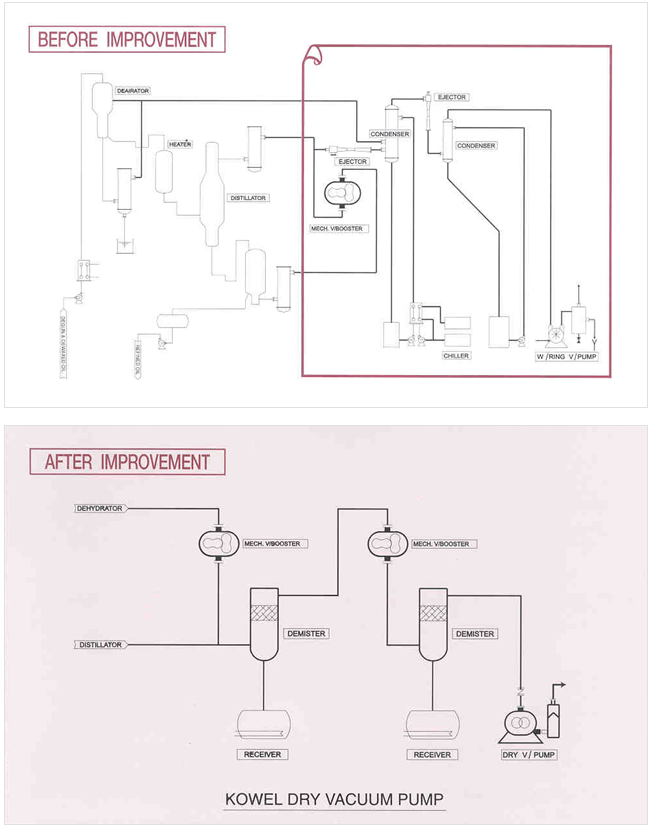

| Before (Wet type) |
After (Dry type) |
Steam Ejector, Condenser, Chiller,
Water Ring Vacuum pump |
Dry Screw Vacuum Pump
With Mechanical Booster |
|
|
|
 |
|
| Description |
Application Plant |
Process |
End User |
| Chemical Medicine Food Ind. |
Fatty acid distillation
Vitamin Refining
Food additive distilling
Edible Oil |
Soap manuf.
Fish oil Lubricant
Paint adhesive Rice oil refining |
DONGSAN C & G
SHINYANG Oil & Fat
PYUNGHWA Soap
HYOSUNG Industries
LG Chemical
KOLON Chemical
SAMCHUNRI Pharmacy |
|
|
|
 |
|
| Basic Specification |
1. Capacity: 3Ton/Hr
2. Oper. Pressure: Deoxidation (0.2Torr/2Torr), Dehydration (10Torr)
3. Ejector: 1st, 2nd Booster
4. Chiller: 40R/T
5. Barocon: Suction 14℃, Discharge 20℃
|
| Utility Consumption (Wet type) |
Utility Consumption (Dry type) |
a) Ejector Steam consumption: 150kg/hr
b) Barometric Condenser Cooling
· water consumption: 20m3/hr
c) Electric
· 1st Barocon Supply pump: 15kw
· 2nd Barocon Supply pump: 5.5kw
· Water Ring Vacuum pump: 15kw Compressor: 30kw
· Brine pump: 5kw
· Cooling Water pump: 7.5kw
· Mechanical Booster: 7.5kw
|
a) Mechanical Vacuum Booster,
· 2set: 22.5kw
b) Dry Screw Vacuum pump,
· 2set: 45kw
|
|
|
|
|
