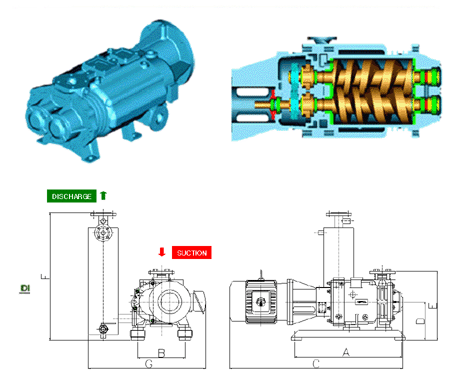

| SIZE
PUMP MODEL |
A |
B |
C |
D |
E |
F |
G |
Port Size(A) |
| SUC |
DIS |
| KDPH120 Semi |
590 |
240 |
851 |
215 |
385 |
715 |
670 |
40 |
40 |
| KDPH120 Ind. |
590 |
240 |
951 |
215 |
385 |
715 |
653 |
40 |
40 |
| KDPH200 |
745 |
242 |
1161 |
248 |
427 |
830 |
803 |
40 |
40 |
| KDPH320 |
860 |
280 |
1237 |
263 |
467 |
832 |
833 |
50 |
40 |
| KDPH430 |
960 |
300 |
1467 |
277 |
501 |
931 |
933 |
65 |
50 |
| KDPH800 |
1054 |
348 |
1605 |
297 |
553 |
1011 |
1021 |
100 |
65 |
| KDPH1000 |
1054 |
348 |
1650 |
297 |
553 |
1011 |
1021 |
100 |
65 |
| KDPH1500 |
1755 |
780 |
2195 |
480 |
853 |
1460 |
1356 |
125 |
80 |
| KDPH1800 |
1755 |
780 |
2195 |
480 |
853 |
1460 |
1356 |
125 |
80 |
| KDPH2700 |
1950 |
1044 |
2382 |
560 |
975 |
1550 |
1382 |
150 |
100 |
|
