KDP-series
kowel has been trying to develop vacuum industry since it't establishment in 1989.
KDPE300, Optimized dry vacuum pump to replace water ring vacuum pump in a low vacuum level
advantages
· Technology intensive dry vacuum pump
· Compact design & small footprint
· Mass production & short lead time
· Easy maintenance based on advanced technology
kdpe300_img
Technical Specification
KDPE Series KDPE300
Nominal Displacement 50 / 60Hz (m3/hr) 250 / 300
Ultimate Pressure 50 / 60Hz 10 / 0.7
Motor Power (kW/HP) 11 / 15
Port Size Suction (A) 50
Discharge (A) 40
Cooling Water (ℓ/min.) 8
Dimension (WxHxL) 417x326x752
Weight (Pump only) 216kg

* Specifications are subject to change without notice to improve product quality and capacity has a tolerance of +/- 10%.

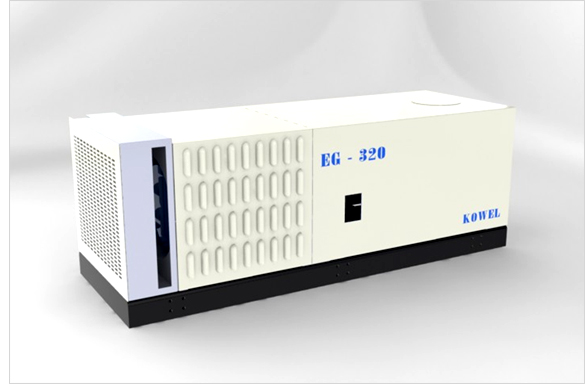

EG120~800
EG-series
advantages
· No cooling water & pipeline required
· Self cooling system (EG120 ~ 800)
· Portable & Easy installation
· Stable cooling water supply, pressure & temperature
Technical Specification
Model EG120 EG200 EG320 EG430 EG800
Nominal Capacity (60Hz) m3/hr 120 190 300 400 700
m3/min 2.0 3.1 5.0 6.7 11.6
Ultimate Pressure (60Hz) Torr ≤ 0.01 ≤ 0.01 ≤ 0.01 ≤ 0.01 ≤ 0.01
Nominal power kW 3.7 5.5 7.5 11 15
Rotation(50/60Hz) Rpm 2900/3500
Port Size(A) Suction /
Discharge
40/40 40/40 50/40 65/50 100/65
Cooling Method Self cooling
